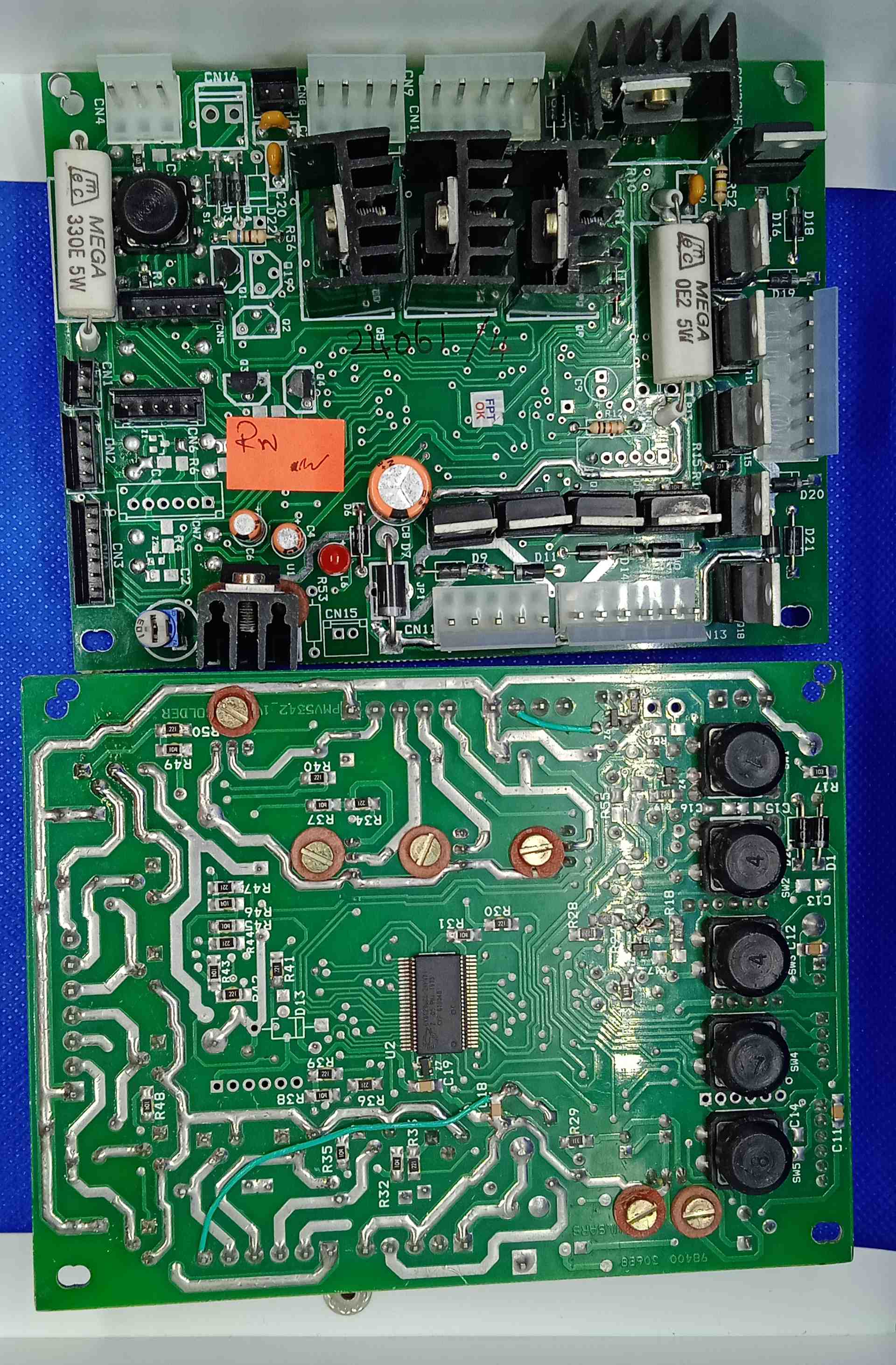

DC Vending machine controller for double selection
Double selection DC Vending machine controller
- 5 selection switches
- 2 Canisters
- 2 dispense valves, 2 mixing motors, 1 Constant level valve, 1 hot water valve
- Rinse provision
- Temperature sensing and heater control
- Sold out input - cuts off heater and disables selection till water is filled again
- Predictive heating
More details in the following documents :
Dimensional Details
Wiring Diagram
User Manual

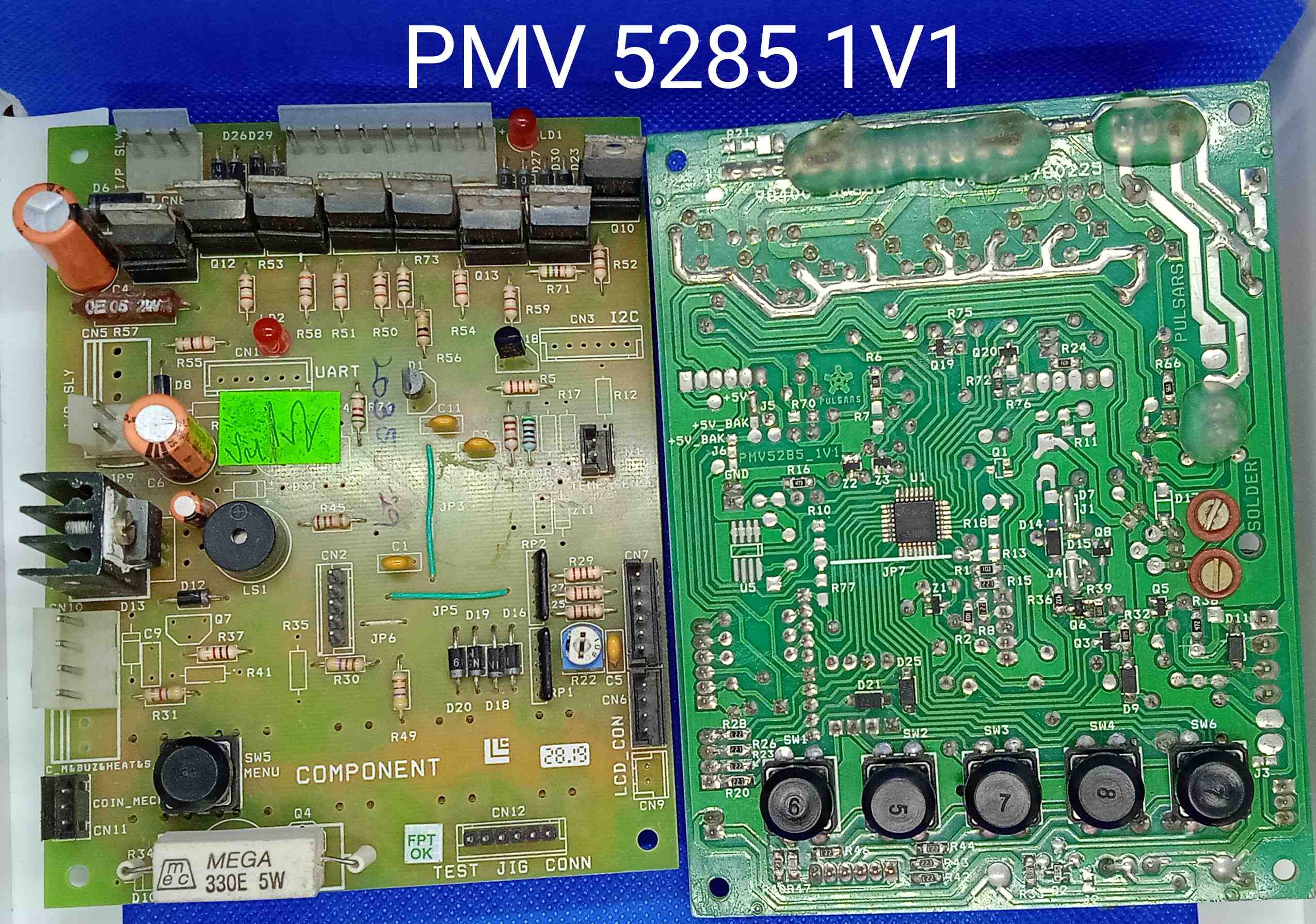

DC Vending machine controller for four selection
Four selection DC Vending machine controller
- 5 push buttons for user selection
- 4 canisters
- 4 dispense valves, 4 mixing motors, 1 Constant level valve, 1 hot water valve
- Programming such that mixed beverages are possible
- Water level sensing via level probes
- Temperature sensing and heater control
- Predictive heating
More details in the following documents :
Dimensional Details
Wiring Diagram
User Manual

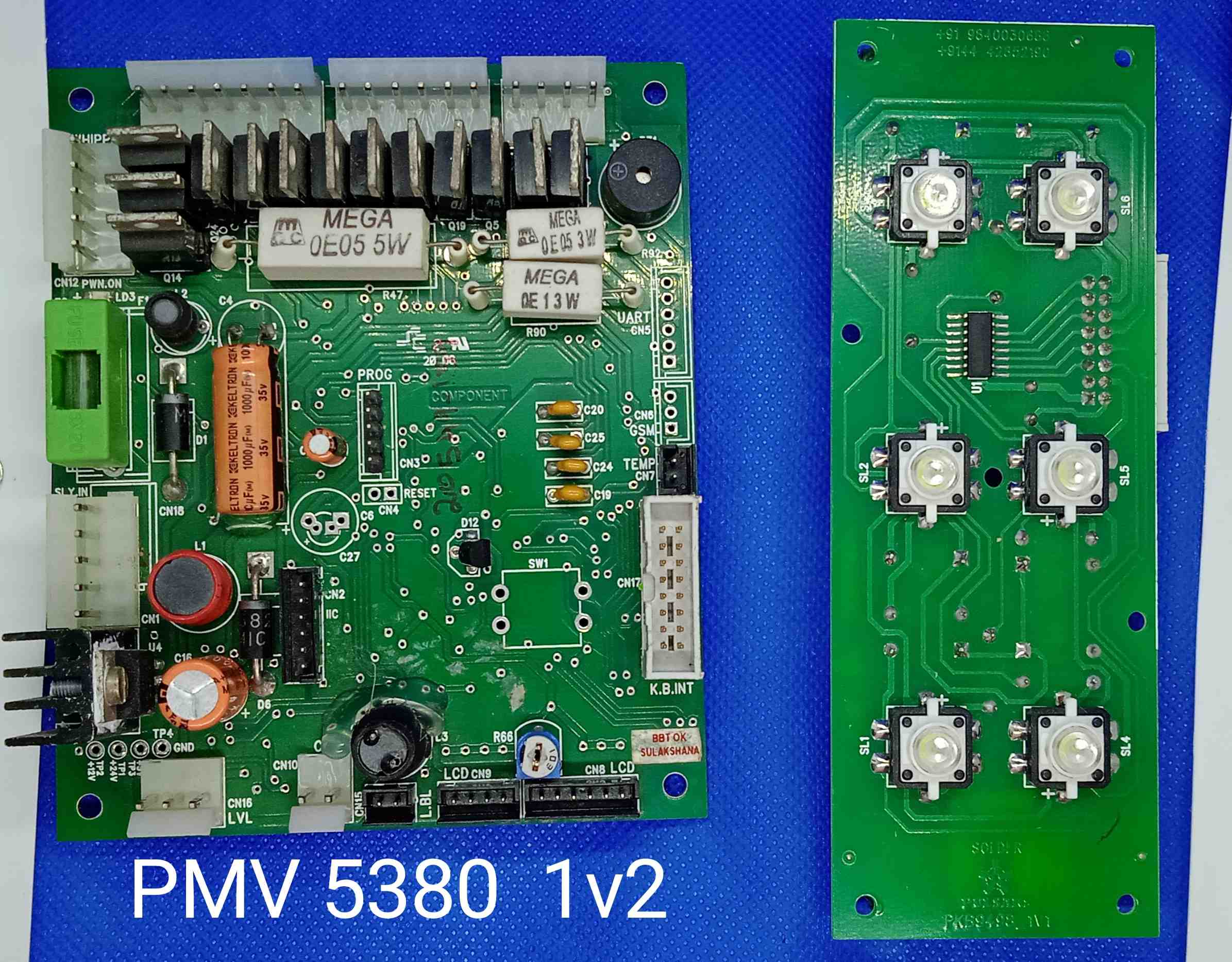

DC Vending machine controller for triple selection
Triple selection DC Vending machine controller
- 6 Illuminated push buttons for user selection
- 3 canisters
- 3 dispense valves, 3 mixing motors, 1 Constant level valve, 1 hot water valve, 1 fan control
- Programming such that mixed beverages are possible
- Water level sensing via level probes
- Temperature sensing and heater control
- Predictive heating
More details in the following documents :
Wiring Diagram
User Manual

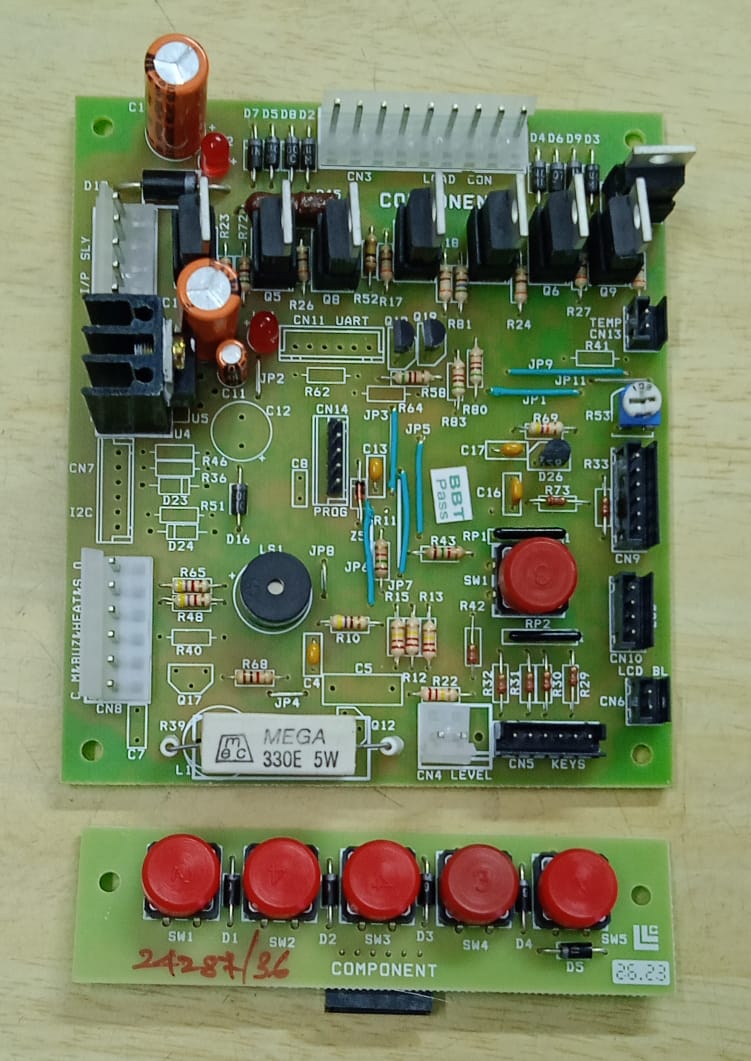

DC Vending machine controller for double selection
Double selection DC Vending machine controller with built-in switches
- 5 selection switches
- 2 Canisters
- 2 dispense valves, 2 mixing motors, 1 Constant level valve, 1 hot water valve
- Rinse provision
- Temperature sensing and heater control
- Sold out input - cuts off heater and disables selection till water is filled again
- Predictive heating
